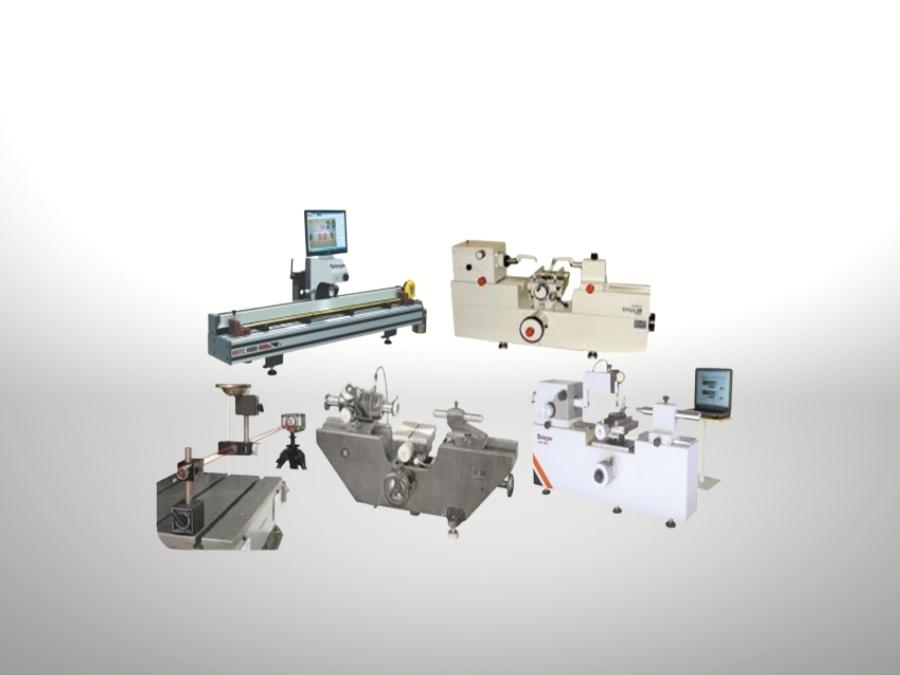

Calibration of Master Equipment’s by using Laser interferometer.
OM Engineers Metrology Pvt. Ltd. is proud to established Laser Calibration Facilities under NABL Accreditation with world class instrumentation Renishaw Metrology , UK and our standard is traceable to Federal Institute of Metrology , METAS Switzerland to ensure low uncertainty of measurements for below services
NABL has awarded accreditation to OM Engineers Metrology Pvt. Ltd., Pune for –
1.ULM / Length Measuring Machine for the Range of 0 – 1000 mm with CMC ± 0.08 + 0.3 L um L is in mtr.
2.Tape & Scale Calibrator for the Range of 0 – 2000 mm with CMC ± 0.7 + 0.64 L µm, ‘L’ in meterfor
3.NC / CNC Machine / Machine tools – For positional accuracy for the range of 0 to 10000 mm with CMC ± 2.9 + 1 L µm, ‘L’ in meter.
4.Glass Scales Up to 300 mm with CMC ± 2.0 um
5.Profile Projectors Video Measuring Machines Linear Scale up to 500 mm With CMC ± 0.08 + 0.3 L um L is in mtr
